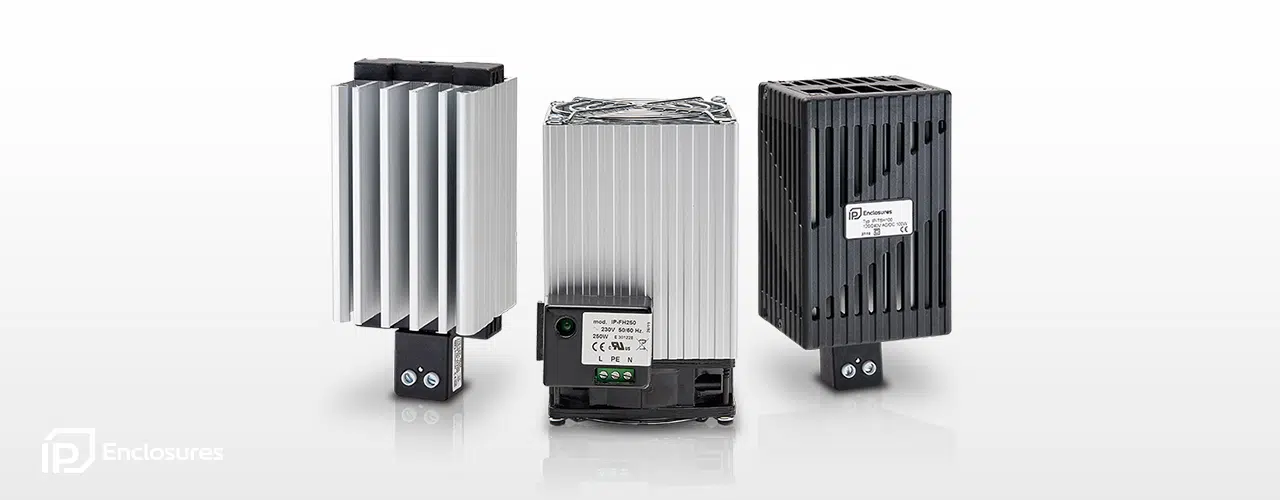

Anti-condensation Heaters
IP Enclosures provide a wide range of heating products for electrical enclosures. Anti-condensation heaters are required to prevent failures or corrosion caused by low temperatures or high humidity inside the enclosure. This occurs when ambient temperature is low and the equipment does not generate enough heat to maintain the minimum internal temperature. IP Enclosures heating products are manufactured to the highest quality in Italy.
| Heating Capacity | Dimensions | Ordering Information | Data Sheet | Step File | SHOP | ||
|---|---|---|---|---|---|---|---|
| Watts | (mm) | 230V | 24V DC | Integrated Thermostat | .stp | ||
| Compact Heaters | |||||||
| 25W | 128 x 59 x 61 | IP-H25 | IP-H25.001 | .stp | Buy | ||
| 50W | 100 x 40 x 40 | IP-H50 | IP-H50.24 | IP-H50.001 | .stp | Buy | |
| 75W | 140 x 59 x 61 | IP-H75 | IP-H75.001 | .stp | Buy | ||
| 100W | 140 x 59 x 61 | IP-H100 | IP-100.24 | IP-H100.001 | .stp | Buy | |
| 150W | 220 x 59 x 61 | IP-H150 | IP-H150.001 | .stp | Buy | ||
| Heaters with Touch Shield | |||||||
| 25W | 125 x 41 x 41 | IP-TSH25 | IP-TSH25.001 | .stp | Buy | ||
| 50W | 125 x 41 x 41 | IP-TSH50 | IP-TSH50.001 | .stp | Buy | ||
| 75W | 140 x 63 x 70 | IP-TSH75 | IP-TSH75.001 | .stp | Buy | ||
| 100W | 140 x 63 x 70 | IP-TSH100 | IP-TSH100.001 | .stp | Buy | ||
| 150W | 220 x 63 x 70 | IP-TSH150 | IP-TSH150.001 | .stp | Buy | ||
| Fan-Assisted Heaters | |||||||
| 250W | 135 x 112 x 82 | IP-FH250 | .stp | Buy | |||
| 400W | 165 x 112 x 82 | IP-FH400 | .stp | Buy | |||
| 500W | 165 x 112 x 82 | IP-FH500 | .stp | Buy | |||
| 750W | 225 x 112 x 82 | IP-FH750 | .stp | Buy | |||
| Fan-Assisted (Small Footprint) Heaters | |||||||
| 150W | 88 x 66 x 97 | IP-TMX150 | .stp | ||||
| 250W | 88 x 66 x 97 | IP-TMX250 | .stp | ||||
| 300W | 88 x 66 x 97 | IP-TMX300 | .stp | ||||
| 400W | 88 x 66 x 97 | IP-TMX400 | .stp | ||||
Compact Heater – H Range
Compact heaters with minimum DIN rail foot-print.
IP-25- 25W Heater 128 x 59 x 61 (mm)
| Features | Unit | IP-H25 | |
|---|---|---|---|
| Heating Capacity* | W | 25 | |
| Power supply | V | 120-240V AC or DC | |
| Inrush current | A | 2.5 | |
| Delayed fuse (advised) | A | 4 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 128x59x61 | |
| Weight | kg | 0.24(0.26) | |
| Conformity | – | CE, UKCA | |
| *at 10°C (50°F) ambient temperature |
IP-50- 50W Heater 100 x 40 x 40 (mm)
| Features | Unit | HT50.000 | |
|---|---|---|---|
| Heating Capacity* | W | 50 | |
| Power supply | V | 120-240V AC or DC | |
| Inrush current | A | 3.5 | |
| Delayed fuse (advised) | A | 4 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 110x59x61 | |
| Weight | kg | 0.24(0.28) | |
| Conformity | – | CE – UL File n. E301228 | |
| *at 10°C (50°F) ambient temperature |
IP-H75 – 75W Heater 140 x 59 x 61 (mm)
| Features | Unit | IP-H75 | |
|---|---|---|---|
| Heating Capacity* | W | 75 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 4 | |
| Delayed fuse (advised) | A | 6.3 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 140x59x61 | |
| Weight | kg | 0.34 | |
| Conformity | – | CE – UL  |
|
| *at 20°C (68°F) ambient temperature |
IP-H100 – 100W Heater 140 x 59 x 61 (mm)
| Features | Unit | IP-H100 | |
|---|---|---|---|
| Heating Capacity* | W | 100 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 5 | |
| Delayed fuse (advised) | A | 8 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 140x59x61 | |
| Weight | kg | 0.34 | |
| Conformity | – | CE – UL |
|
| *at 20°C (68°F) ambient temperature |
IP-H150 – 150W Heater 220 x 59 x 61 (mm)
| Features | Unit | IP-H150 | |
|---|---|---|---|
| Heating Capacity* | W | 150 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 9.5 | |
| Delayed fuse (advised) | A | 10 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 220x59x61 | |
| Weight | kg | 0.57 | |
| Conformity | – | CE – UL |
|
| *at 20°C (68°F) ambient temperature |
Heater with Touch Shield – TSH Range
Optimised design to achieve lower surface temperature and increased heat transfer efficiency.
IP-TSH25 – 25W Heater 125 x 41 x 41 (mm)
| Features | Unit | IP-TSH25 | |
|---|---|---|---|
| Heating Capacity* | W | 25 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 2.5 | |
| Delayed fuse (advised) | A | 4 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile with plastic cover | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 125x41x41 | |
| Weight | kg | 0.16 | |
| Conformity | – | CE – UL |
|
| *at 20°C (68°F) ambient temperature |
IP-TSH50 – 50W Heater 125 x 41 x 41 (mm)
| Features | Unit | IP-TSH50 | |
|---|---|---|---|
| Heating Capacity* | W | 50 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 3.5 | |
| Delayed fuse (advised) | A | 4 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile with plastic cover | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 125x41x41 | |
| Weight | kg | 0.16 | |
| Conformity | – | CE – UL |
|
| *at 20°C (68°F) ambient temperature |
IP-TSH75 – 75W Heater 140 x 63 x 70 (mm)
| Features | Unit | IP-TSH75 | |
|---|---|---|---|
| Heating Capacity* | W | 75 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 4 | |
| Delayed fuse (advised) | A | 6.3 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile with plastic cover | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 140x63x70 | |
| Weight | kg | 0.39 | |
| Conformity | – | CE – UL |
|
| *at 20°C (68°F) ambient temperature |
IP-TSH100 – 100W Heater 140 x 63 x 70 (mm)
| Features | Unit | IP-TSH100 | |
|---|---|---|---|
| Heating Capacity* | W | 100 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 5 | |
| Delayed fuse (advised) | A | 8 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile with plastic cover | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 140x63x70 | |
| Weight | kg | 0.39 | |
| Conformity | – | CE – UL |
|
| *at 20°C (68°F) ambient temperature |
IP-TSH150 – 150W Heater 220 x 63 x 70 (mm)
| Features | Unit | IP-TSH150 | |
|---|---|---|---|
| Heating Capacity* | W | 150 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 9.5 | |
| Delayed fuse (advised) | A | 10 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile with plastic cover | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 220x63x70 | |
| Weight | kg | 0.66 | |
| Conformity | – | CE – UL |
|
| *at 20°C (68°F) ambient temperature |

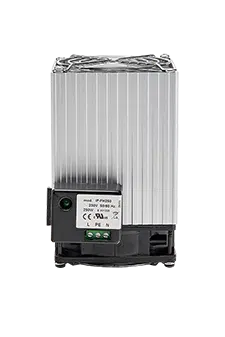

Fan Assisted Heater – FH Range
Fan assisted, resistor heaters.
IP-FH250 – 250W Heater 135 x 112 x 82 (mm)
| Features | Unit | IP-FH250 |
|---|---|---|
| Heating Capacity | W | 250 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 1.2 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Ball bearing; service life 50.000 hrs at 25°C (77°F) air flow rate 35 m³/h; free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class I earthed |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -25/+70 (-13/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 135x112x82 |
| Weight (with packaging) | kg | 0.88(0.94) |
| Conformity | – | CE – UL |
IP-FH400 – 400W Heater 165 x 112 x 82 (mm)
| Features | Unit | IP-FH400 |
|---|---|---|
| Heating Capacity | W | 400 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 1.9 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 35 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class I earthed |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -25/+70 (-13/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 165x112x82 |
| Weight (with packaging) | kg | 0.97(1.04) |
| Conformity | – | CE – UL |
IP-FH500 – 500W Heater 165 x 112 x 82 (mm)
| Features | Unit | IP-FH500 |
|---|---|---|
| Heating Capacity | W | 500 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 2.4 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile anodized |
| Axial fan | – | Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 35 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class I; earthed |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -25/+70 (-13/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 165x112x82 |
| Weight (with packaging) | kg | 0.97(1.04) |
| Conformity | – | CE – UL |
IP-FH750 – 750W Heater 225 x 112 x 82 (mm)
| Features | Unit | IP-FH750 |
|---|---|---|
| Heating Capacity | W | 750 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 3.6 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 44 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class I; earthed |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -25/+70 (-13/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 225x112x82 |
| Weight (with packaging) | kg | 1.35(1.42) |
| Conformity | – | CE – UL |
Fan Assisted (Small Footprint)
IP-TMX150 – 150W Heater 88 x 66 x 97 (mm)
| Features | Unit | IP-TMX150 |
|---|---|---|
| Heating Capacity | W | 150 |
| Power supply | V/Hz | |
| Max. current | A | 6.3 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 44 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | Spring terminals |
| Protection class IEC | – | Class II |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -40/+70 (-40/+158) |
| Storage temperature | °C (°F) | -40/+70 (-40/+158) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 88 x 66 x 97 |
| Weight (with packaging) | kg |
0.35
|
| Conformity | – |
CE – UL |
IP-TMX250 – 500W Heater 88 x 66 x 97 (mm)
| Features | Unit | IP-TMX250 |
|---|---|---|
| Heating Capacity | W | 500 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 6.3 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Air flow rate 30 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | Spring terminals |
| Protection class IEC | – | Class II |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -40/+70 (-40/+158) |
| Storage temperature | °C (°F) | -40/+70 (-40/+158) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 88 x 66 x 97 |
| Weight (with packaging) | kg | 0.35 |
| Conformity | – | CE – UL |
IP-TMX300- 500W Heater 88 x 66 x 97 (mm)
| Features | Unit | IP-TMX300 |
|---|---|---|
| Heating Capacity | W | 750 |
| Power supply | V/Hz | |
| Max. current | A | 6.3 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Air flow rate 30 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class II |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -40/+70 (-40/+158) |
| Storage temperature | °C (°F) | -40/+70 (-40/+158) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 88 x 66 x 97 |
| Weight (with packaging) | kg | 0.35 |
| Conformity | – | CE – UL |
IP-TMX400- 750W Heater 88 x 66 x 97 (mm)
| Features | Unit | IP-TMX300 |
|---|---|---|
| Heating Capacity | W | 750 |
| Power supply | V/Hz | |
| Max. current | A | 6.3 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Air flow rate 30 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class II |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -25/+70 (-13/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 88 x 66 x 97 |
| Weight (with packaging) | kg | 0.35 |
| Conformity | – | CE – UL |
