Inner Doors for Floor Standing Electrical Cabinets

Electrical Cabinet Inner Door Escutcheons

IP Enclosures provide a range of inner door escutcheons for floor standing electrical cabinets. Inner doors enable operators to access control equipment inside an electrical cabinet while maintaining separation of hazardous voltage equipment within the hazardous voltage area behind the inner door. Hinged escutcheon plates accommodate control components such as circuit breaker handles, pushbuttons, indicator lights and HMI’s. Inner door escutcheons are an optional feature that can be easily fitted into new or existing IP Enclosures floor standing electrical cabinets. Each inner door kit is provided with the inner door, two vertical rails and fasteners for easy assembly into the cabinet.

Inner Doors – Powder-Coated Steel

Steel inner doors are fabricated using 1.5mm galvanised steel sheet. UL approved epoxy polyester powder coated with a textured RAL7035 finish to 80-120 micron average thickness.

Part NumberDescription
SKUH x W
IP-MFSID162401620 x 400 Powder-Coated Inner Door
IP-MFSID162601620 x 600 Powder-Coated Inner Door
IP-MFSID162801620 x 800 Powder-Coated Inner Door
IP-MFSID186401860 x 400 Powder-Coated Inner Door
IP-MFSID186601860 x 600 Powder-Coated Inner Door
IP-MFSID186801860 x 800 Powder-Coated Inner Door
IP-MFSID1861001860 x 1000 Powder-Coated Inner Door
IP-MFSID1861201860 x 1200 Powder-Coated Inner Door
IP-MFSID202402020 x 400 Powder-Coated Inner Door
IP-MFSID202602020 x 600 Powder-Coated Inner Door
IP-MFSID202802020 x 800 Powder-Coated Inner Door
IP-MFSID2021002020 x 1000 Powder-Coated Inner Door
IP-MFSID2021202020 x 1200 Powder-Coated Inner Door

Inner Doors – Grade 316 Stainless Steel

Stainless Steel inner doors are fabricated using 1.5mm Grade 316/316L Stainless Steel.

Part NumberDescription
SKUH x W
IP-MFSSID162401620 x 400 Stainless Steel Inner Door
IP-MFSSID162601620 x 600 Stainless Steel Inner Door
IP-MFSSID162801620 x 800 Stainless Steel Inner Door
IP-MFSSID186401860 x 400 Stainless Steel Inner Door
IP-MFSSID186601860 x 600 Stainless Steel Inner Door
IP-MFSSID186801860 x 800 Stainless Steel Inner Door
IP-MFSSID1861001860 x 1000 Stainless Steel Inner Door
IP-MFSSID1861201860 x 1200 Stainless Steel Inner Door
IP-MFSSID202402020 x 400 Stainless Steel Inner Door
IP-MFSSID202602020 x 600 Stainless Steel Inner Door
IP-MFSSID202802020 x 800 Stainless Steel Inner Door
IP-MFSSID2021002020 x 1000 Stainless Steel Inner Door
IP-MFSSID2021202020 x 1200 Stainless Steel Inner Door

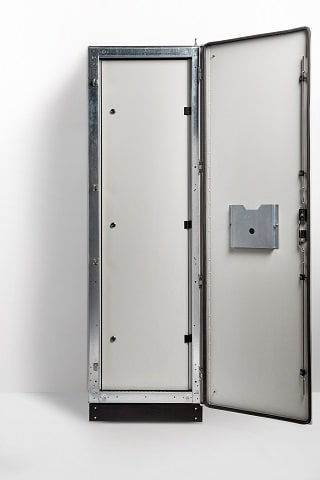

Inner Door for Electrical Cabinet

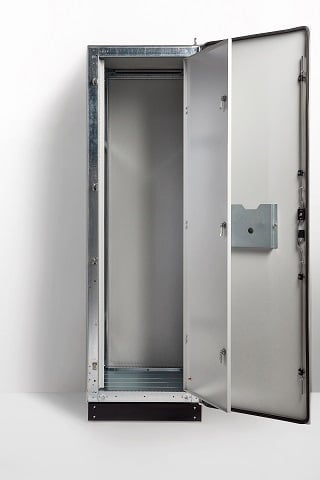

Inner Door for Electrical Cabinet - Open
Inner Door Escutcheon
