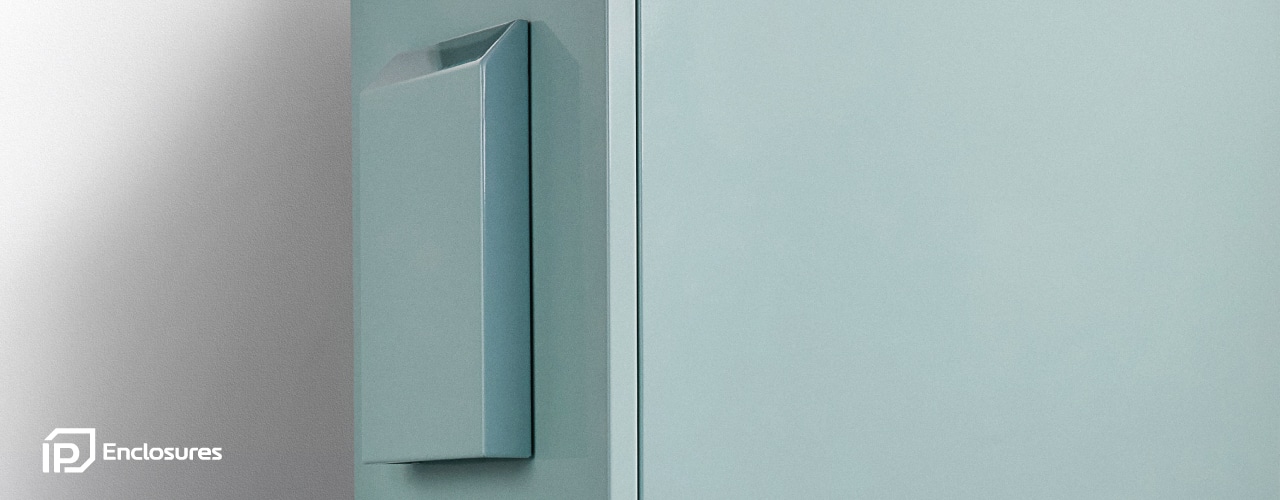

Vent Hoods
Vent hoods and vented electrical enclosures are available. Electrical enclosures with pre-fitted ventilation systems are also available as standard products.
Features & Benefits
IP Enclosures provide vent hoods to increase protection of vents, vent filters and internal components. The top of vent hoods are inclined to prevent settling and building up of liquids, corrosive solids, minerals, dust, dirt and debris on top of the vent hood. All IP Enclosures electrical enclosure vent hoods are manufactured with nutserts for ease of installation and gaskets to prevent crevice corrosion.
Vent Hoods are designed to be fitted to IP Enclosures electrical enclosures and are supplied with fasteners.

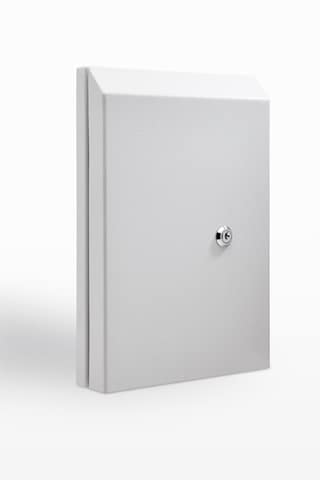

Vent Hoods – Powder Coated Steel
Surface Treatment: UL approved epoxy polyester powder coated with a textured finish. 80-120 micron average thickness. Colour RAL7035 (Other colours available upon request)
IP Rating: IP55. Item marked with * is IP56. (When used with IP Enclosures fans & filters)
| Description | Part Number | Part Number |
|---|---|---|
| H x W x D | Standard | Hinged |
| 250 x 175 x 50 Powder-Coated Vent Hood | IP-PSVH2517 | IP-PSVH2517-H |
| 300 x 200 x 50 Powder-Coated Vent Hood | IP-PSVH3020 | IP-PSVH3020-H |
| 320 x 220 x 50 Powder-Coated Vent Hood | *IP-PSVH3222 | IP-PSVH3224-H |
| 400 x 300 x 50 Powder-Coated Vent Hood | IP-PSVH4030 | IP-PSVH4030-H |
| 475 x 375 x 75 Powder-Coated Vent Hood | IP-PSVH4737 | IP-PSVH4737-H |
| 500 x 400 x 75 Powder-Coated Vent Hood | IP-PSVH5040 | IP-PSVH5040-H |

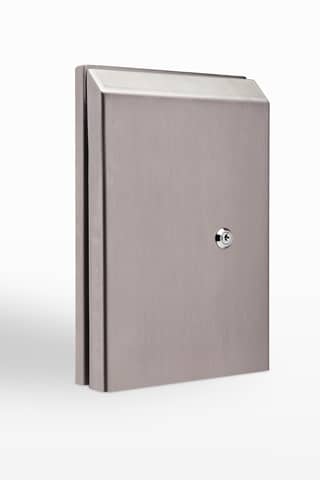

Vent Hoods – Grade 316 Stainless Steel
Material: 1.5mm Grade 316/316L Stainless Steel. Surface Finish: 0.4 micron Ra surface brushed finish
IP Rating: IP55. Item marked with * is IP56. (When used with IP Enclosures fans & filters)
| Description | Part Number | Part Number |
|---|---|---|
| H x W x D | Standard | Hinged |
| 250 x 175 x 50 Stainless Steel Vent Hood | IP-SSVH2517 | IP-SSVH2517-H |
| 300 x 200 x 50 Stainless Steel Vent Hood | IP-SSVH3020 | IP-SSVH3020-H |
| 320 x 220 x 50 Stainless Steel Vent Hood | *IP-SSVH3222 | IP-SSVH3224-H |
| 400 x 300 x 50 Stainless Steel Vent Hood | IP-SSVH4030 | IP-SSVH4030-H |
| 475 x 375 x 75 Stainless Steel Vent Hood | IP-SSVH4737 | IP-SSVH4737-H |
| 500 x 400 x 75 Stainless Steel Vent Hood | IP-SSVH5040 | IP-SSVH5040-H |
