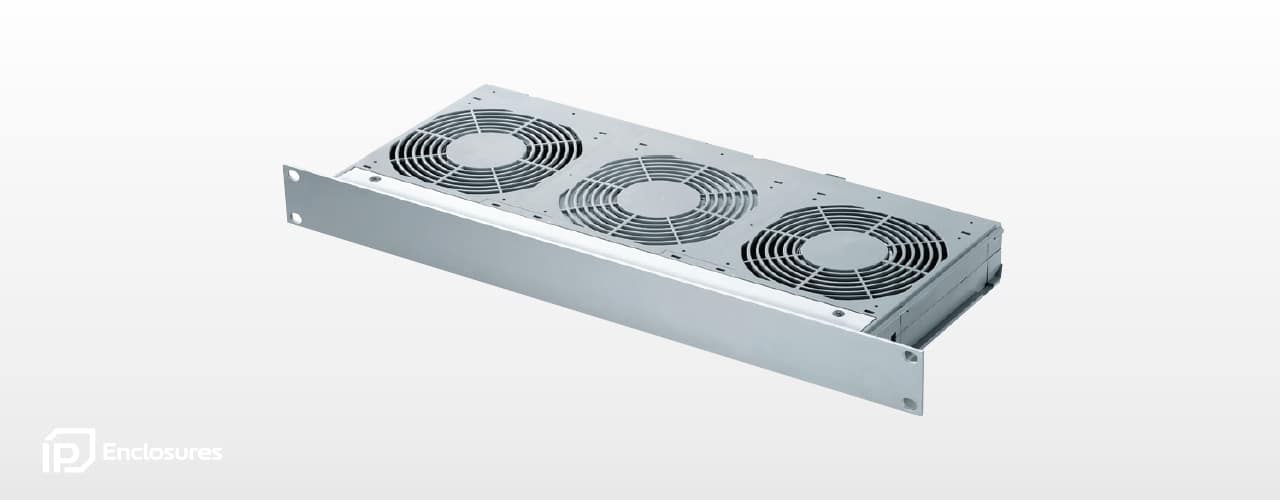

Fan Trays for 19″ Data Racks
IP Enclosures provide a range of Fan Trays to suit 19″data racks including two-fan and three-fan units ranging from 300m3/hr to 450m3/hr.
IP-RACKFAN2 – Two Fan Unit 300m3/hr
| Features | Unit | IP-RACKFAN2 | |
|---|---|---|---|
| Air flow rate (free blow) m³/h 300(360) | |||
| Power supply | V/Hz | 230/50-60 | |

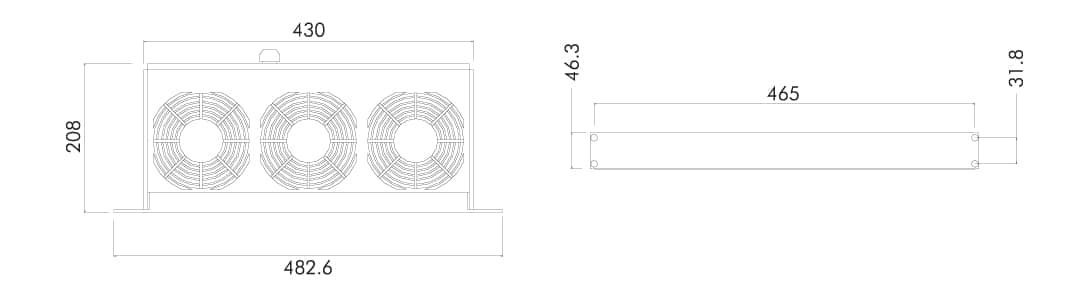

| Dimensions HxWxD | mm | 482x44x208 | |
| Power consumption | W | 36(34) | |
| Current consumption | A | 0.26(0.22) | |
| Overcurrent protection | – | impedance | |
| Electric connection | – | 3-pole terminal 2.5 mm² | |
| Duty cycle | – | 100% | |
| Operating temperature | °C | -10/+70 | |
| Protection degree/class | – | IP30/Class I | |
| Noise level | dB(A) | 51(52) | |
| Flow direction | – | bottom to top | |
| Bearing | – | ball | |
| Service life (at 40°C) | hr | 50.000 | |
| Material | – | PC-ABS UL94V-0 Color RAL7035 | |
| Weight (with packaging) | kg | 2.10(2.30) | |
| Package dimensions | mm | 510x220x65 | |
| Mounting | – | Screws | |
| Conformity/Approvals | – | CE |
| Features | Unit | IP-RACKFAN2-24 |
|---|---|---|
| Air flow rate (free blow) m³/h 300 | ||
| Power supply | V/Hz | 24DC |
| Dimensions HxWxD | mm | 482x44x208 |
| Power consumption | W | 18 |
| Current consumption | A | 0.75 |
| Overcurrent protection | – | impedance |
| Electric connection | – | 3-pole terminal 2.5 mm² |
| Duty cycle | – | 100% |
| Operating temperature | °C | -10/+70 |
| Protection degree/class | – | IP30/Class I |
| Noise level | dB(A) | 51(52) |
| Flow direction | – | bottom to top |
| Bearing | – | ball |
| Service life (at 40°C) | hr | 50.000 |
| Material | – | PC-ABS UL94V-0 Color RAL7035 |
| Weight (with packaging) | kg | 1.60(1.80) |
| Package dimensions | mm | 510x220x65 |
| Mounting | – | Screws |
| Conformity/Approvals | – | CE |
IP-RACKFAN3 – Three Fan Unit 300m3/hr
| Features | Unit | IP-RACKFAN3 | |
|---|---|---|---|
| Air flow rate (free blow) m³/h 450(540) | |||
| Power supply | V/Hz | 230/50-60 | |
| Dimensions HxWxD | mm | 482x44x208 | |
| Power consumption | W | 54(51) | |
| Current consumption | A | 0.39(0.33) | |
| Overcurrent protection | – | impedance | |
| Electric connection | – | 3-pole terminal 2.5 mm² | |
| Duty cycle | – | 100% | |
| Operating temperature | °C | -10/+70 | |
| Protection degree/class | – | IP30/Class I | |
| Noise level | dB(A) | 51(52) | |
| Flow direction | – | bottom to top | |
| Bearing | – | ball | |
| Service life (at 40°C) | hr | 50.000 | |
| Material | – | PC-ABS UL94V-0 Color RAL7035 | |
| Weight (with packaging) | kg | 2.60(2.80) | |
| Package dimensions | mm | 510x220x65 | |
| Mounting | – | Screws | |
| Conformity/Approvals | – | CE |
| Features | Unit | IP-RACKFAN3-24 | |
|---|---|---|---|
| Air flow rate (free blow) m³/h 450 | |||
| Power supply | V/Hz | 24DC | |
| Dimensions HxWxD | mm | 482x44x208 | |
| Power consumption | W | 27 | |
| Current consumption | A | 0.12 | |
| Overcurrent protection | – | impedance | |
| Electric connection | – | 3-pole terminal 2.5 mm² | |
| Duty cycle | – | 100% | |
| Operating temperature | °C | -10/+70 | |
| Protection degree/class | – | IP30/Class I | |
| Noise level | dB(A) | 51(52) | |
| Flow direction | – | bottom to top | |
| Bearing | – | ball | |
| Service life (at 40°C) | hr | 50.000 | |
| Material | – | PC-ABS UL94V-0 Color RAL7035 | |
| Weight (with packaging) | kg | 1.85(2.05) | |
| Package dimensions | mm | 510x220x65 | |
| Mounting | – | Screws | |
| Conformity/Approvals | – | CE |
