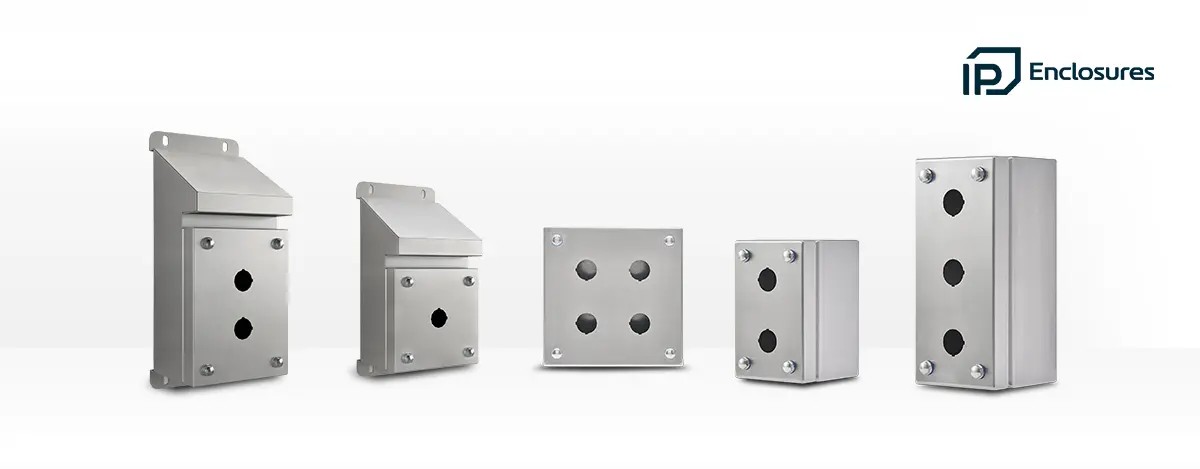

Stainless Steel Pushbutton Enclosures
IP Enclosures Stainless Steel Pushbutton Enclosures are designed for use in the harshest environments. The silicon seal is resistant to harsh chemicals. They are available in 1 hole, 2 hole, 3 hole, 4 hole, 6 hole, and 8 hole configurations.
Protection: IP66, IP67
Standard: IEC/EN/AS60529, RoHS, CE, UKCA NEMA 4x
Features & Specifications
Material:
– Body: 1.0mm Stainless Steel
– Lid/Door: 1.0mm Stainless Steel
– Seal: Silicone
– Washers: NBR 70 (Nitrile Butadiene Rubber)
Body:
The robust monoblock body is fabricated using 1.0 mm stainless steel.
Lid/Door:
The robust pre-drilled lid/door is fabricated using 1.00mm stainless steel and is fastened using screws. The screws are provided with NBR 70 (Nitrile Butadiene Rubber) washers for use in harsh environments where hydrocarbons are present.
Surface Finish:
0.4 micron Ra surface brushed finish
Seal:
A high quality Silicone seal.
REQUEST PRICE & AVAILABILITY
Our sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.
Pushbutton Sizes
Part Number | Description | Enclosure Size (mm) | Download | Download | Download |
---|---|---|---|---|---|
SKU | Hole & Columns | H x W x D | Data Sheet | Drawing PDF | Drawing .dwg |
IP-304-P1 | 1 Hole IP66 304 Pushbutton Enclosure | 90 x 90 x 90 | .dwg | ||
IP-304-P2 | 2 Hole IP66 304ss Pushbutton Enclosure | 140 x 90 x 90 | .dwg | ||
IP-304-P2X2 | 4 Hole IP66 304ss Pushbutton Enclosure (2 columns of 2) | 160 x 160 x 100 | .dwg | ||
IP-304-P3 | 3 Hole IP66 304ss Pushbutton Enclosure | 140 x 90 x 90 | .dwg | ||
IP-304-P3X2 | 6 Hole IP66 304ss Pushbutton Enclosure (2 columns of 3) | 200 x 200 x 100 | .dwg | ||
IP-304-P4 | 4 Hole IP66 304ss Pushbutton Enclosure | 280 x 90 x 90 | .dwg | ||
IP-304-P4X2 | 8 Hole IP66 304ss Pushbutton Enclosure (2 columns of 4) | 250 x 160 x 100 | .dwg |
